SM100A-NFP Boat Alarm System

$1,275.00



  • 12V or 24V Operation
  • Inputs for up to two colour cameras (four cameras if Mux option is added)
  • Inputs and Outputs can be renamed
  • Input OK/Alarm can be inverted (ie NO to NC)
  • 4 Battery Inputs (0 – 40.00VDC)
  • 2 Bilge Inputs
  • 2 PIR inputs
  • 2 6V Power outputs for PIRs (12V optional)
  • 3 Entry inputs
  • Fridge Temperature Input: -25 to +105 Deg C
  • 1 Shore Power Input
  • 2 Manual relay output (often used for deck lights or fridge on/off))
  • 1 Triggerable relay output (often used for siren)
  • Built in Pitch and Roll motion sensor (detects boat listing or high seas)
  • GPS Built in Geofence (alarm if boat moves outside designated area)
  • Auto dial will call you as well as SMS you if theres an alarm
  • Email capable, reports and HD camera images
  • Works with any common SIM card
  • Built in 4G and GPS antennas
  • External GPS and External 4G Antenna option
  • Optional Bluetooth Interface for local control

Up to 2 marinised cameras with IR lighting for night can connect to SM100A-NFP, $160 each (4 cameras if Mux option is used).

* Specifications subject to change due to ongoing development.

*  Trek Transponder is not a substitute for proper boat care and maintenance but is an aid!



Category:

Description

Model SM100A-NFP is identical to model SM100A except has a blank front panel with no LED indication.

Simply connect the SM100A-NFP to your boats batteries, add bilge float switches, cameras and plug in any common SIM card and the unit is immediately monitoring your boat and its location, and can send alarms and pictures to your phone and up to 5 others by SMS. This model Trek Transponder can also call you if there is an alarm in case you are worried about sleeping through an SMS or are in a noisy environment.

You can also add PIRs or door switches to monitor security, temperature sensor for fridge and any compatible siren/flashing light.

Cameras are invaluable for seeing in detail the cause of an alarm on board, as well as who is on board. You can connect two HD cameras to this unit.

Early warning of problems and knowing what they are gives you the opportunity to solve those problems before they become expensive, disasters or insurance claims.

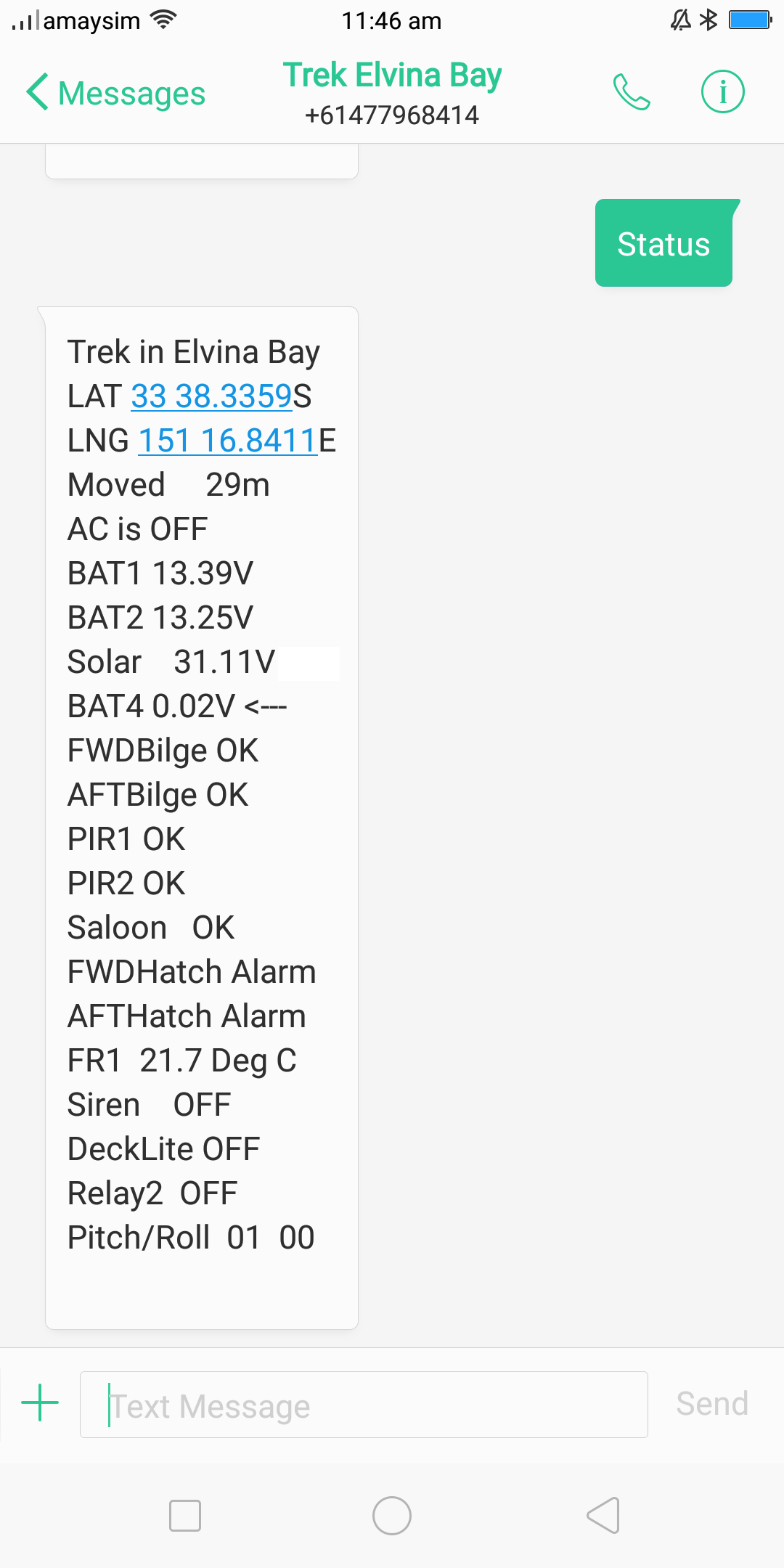

This model Trek Transponder also features fully automatic periodic sending of status reports or camera images, selectable from hourly to 24 hourly.

Trek Transponder SM100A-NFP has three output relays, one is automatic and triggered by security inputs and is intended for sirens or flashing lights. The second pair are manually controllable by SMS from your phone and can be used for pumps, deck lights and many applications.

Trek Transponder SM100A-NFP operates from 12V or 24V and draws only 0.04A so is easy to install on most boats. Standby power use is so low its no problem for boats on moorings. No special SIM or Data SIM is required, only a simple phone SIM.

Trek Transponder is Australian Made and has a 2-year warranty.

Trek Transponder SM100A-NFP Specifications

  • 12V or 24V Operation
  • Inputs for up to two colour cameras (four cameras if Mux option is added)
  • Inputs and Outputs can be renamed
  • Input OK/Alarm can be inverted (ie NO to NC)
  • 4 Battery Inputs (0 – 40.00VDC)
  • 2 Bilge Inputs
  • 2 PIR inputs
  • 2 6V Power supplies for PIRs (12V optional)
  • 3 Entry inputs
  • Fridge Temperature Input: -25 to +105 Deg C
  • 1 Shore Power Input
  • 2 Manual relay outputs (often used for deck lights or fridge on/off))
  • Built in Pitch and Roll motion sensor (detects boat listing or high seas)
  • 1 Triggerable relay output (often used for siren)
  • Built in GPS Geofence (alarm if boat moves outside designated area)
  • Auto dial will call you as well as SMS you if theres an alarm
  • Email capable, reports and HD camera images
  • Automatic periodic reporting from hourly to 24 hourly
  • External GPS and External 4G Antenna option
  • Optional Bluetooth Interface for local control

Front Panel Indications

  • No

Outputs

  • Automatic relay 1 (10minute contact closure triggered by PIR and Entry):   5A 30VDC  N.O.
  • 2 x Manual Relay (controlled by SMS):  5A 30VDC  N.O. contact
  • PIR Power: 2 x 6V (12V optional) regulated over 8V to 32V input voltage range

Power

  • Operating voltage: 8V to 32V   (12V 24V systems automatically detected)
  • Operating power: < 1W

GPS

  • Antenna: Built in, external optional
  • Channels: 48, parallel tracking
  • Correlators: 400,000
  • Frequency: L1 (1575MHz)
  • Horizontal Accuracy: < 3m

Physical

  • Size: 171x121x55mm
  • Case Material: Polycarbonate
  • Mounting:Flange left and right side
  • Cable entry:Specify location desired on order
  • Cable terminations:Screw terminal strip
  • Operating Temperature: 0 – 80 Deg C
  • Weight: 300g

Communications

  • Antennas: Built in, external optional
  • 4G with fall back to 3G then 2G if 4G not available
