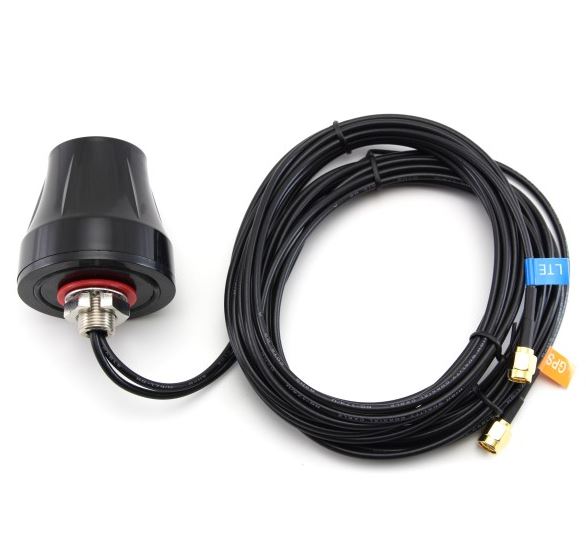

External 4G+GPS Antenna (for Trek Transponders in very weak signal areas)

$240.00

Combined 4G GPS External Antenna for low signal areas or cases where Trek Transponder is mounted in an area inside the vessel with poor signal strength and/or poor sky visibility.

Category:

Description

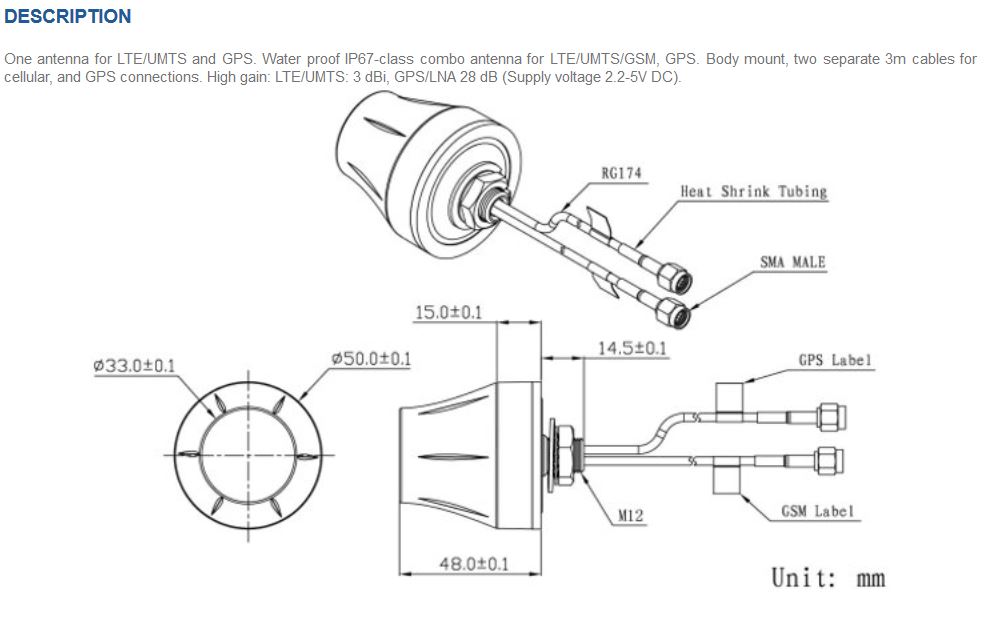

Two separate 3m cables for 4G and GPS. High gain: 4G LTE/UMTS: 3 dBi and GPS/LNA 28 dB.

  • GSM 750, 850/900/1800/1900
  • UMTS 2100
  • LTE 699-960/1710-2690
  • GPS 1575.42
  • Active GPS
  • Mounting method: Screw
  • Gain: 3dBi
  • VSWR: 2:1
  • Connector Type: SMA-Male
  • Diameter: 50 mm
  • Height: 48.5 mm
  • Impedance: 50 Ohm
  • Cable length: 300 cm
  • Cable Specification: RG174
  • Polarization: Linear, RHCP (GPS)
  • IP Class: IP67
  • Operating Temperature Range: -30 °C – 80 °C
