Mini PIR Movement Detector

$79.00

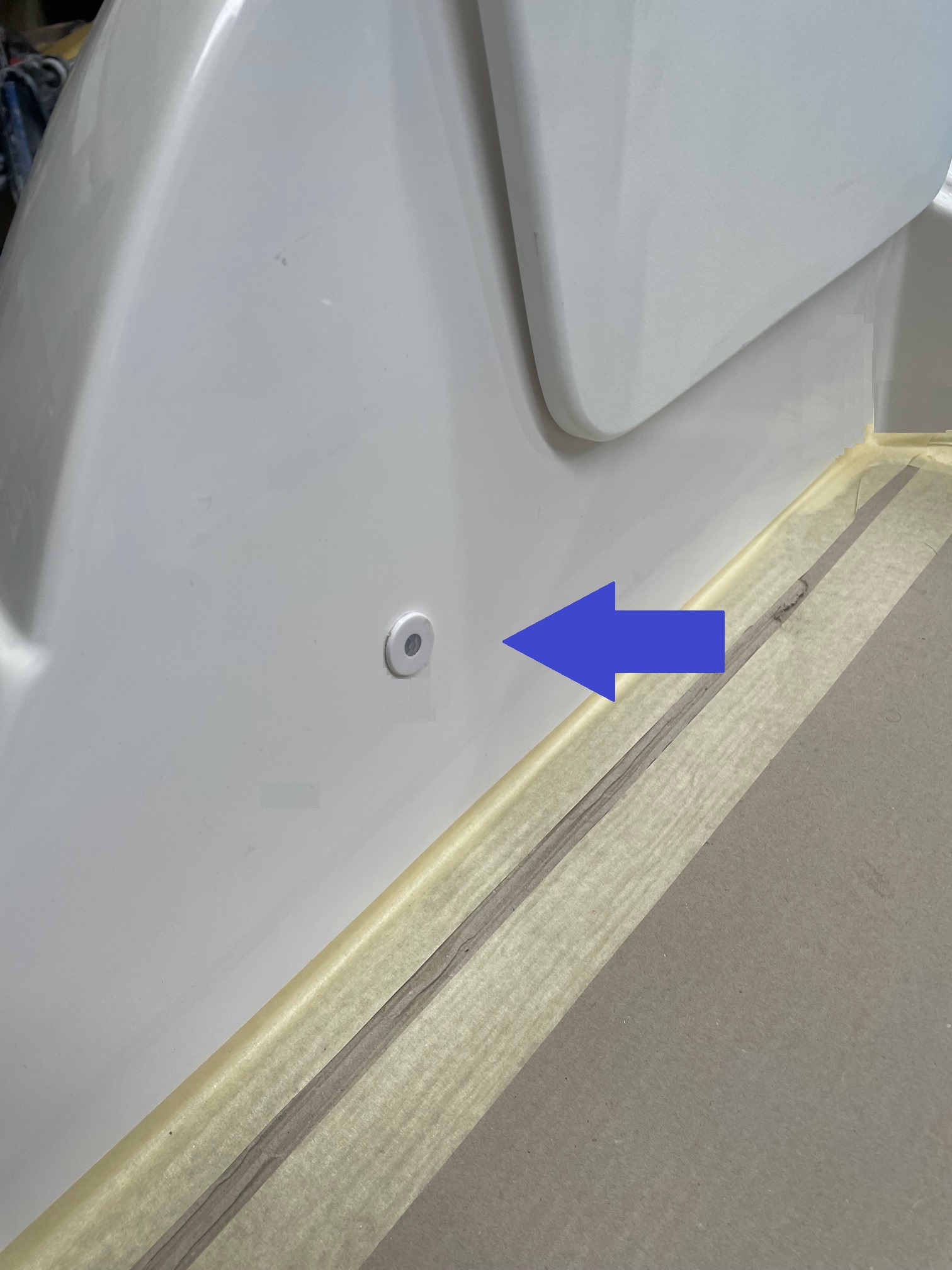

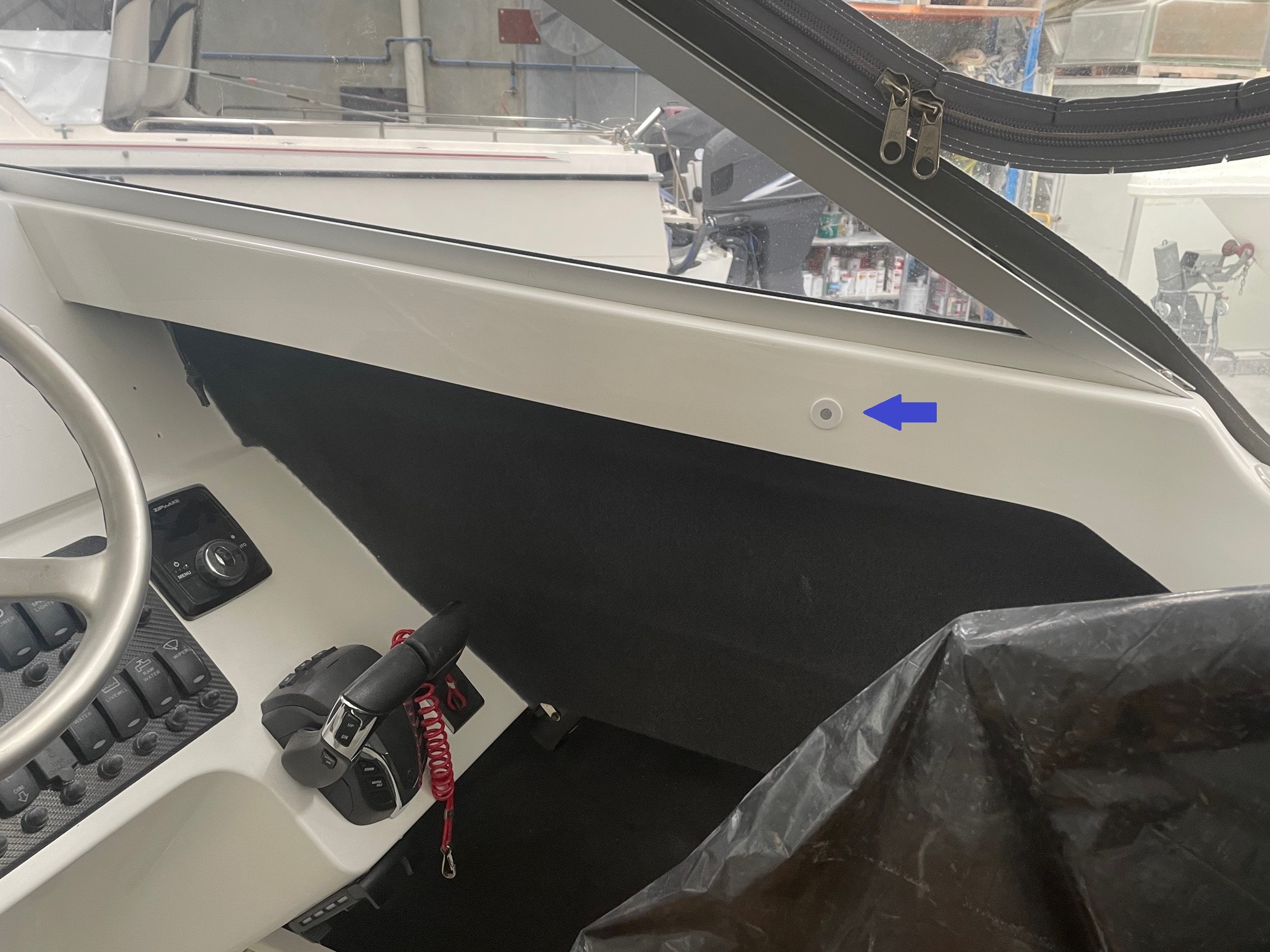

The Mini PIR Movement Detector is a tiny and discrete 21mm diameter PIR sensor. Fitting this sensor where it can monitor desired areas of your boat allows Trek Transponder to readily detect an intruder on board and alert you.

This sensor is also quick and easy to mount in a panel, requiring only a single 19mm hole. It can be wired directly to the Trek Transponders PIR input terminals.



Category:

Description

The Mini PIR Movement Detector is a tiny and discrete 21mm diameter PIR sensor. Fitting this sensor where it can monitor desired areas of your boat allows Trek Transponder to readily detect an intruder on board and alert you.

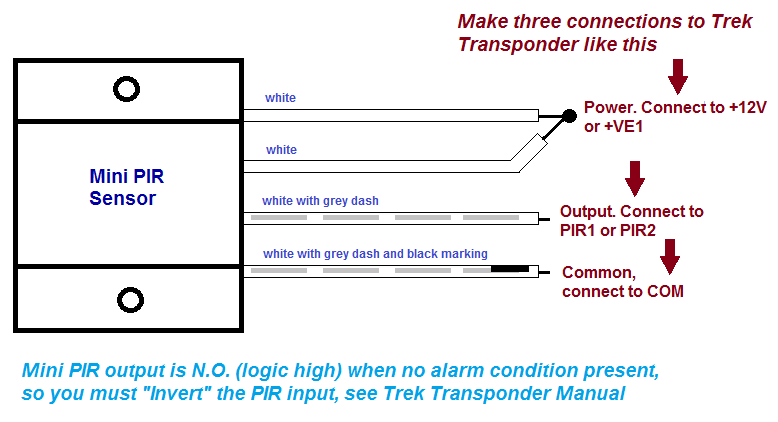

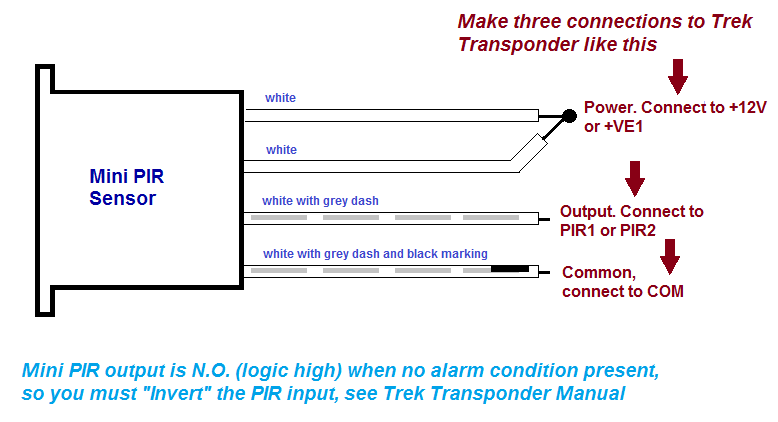

This sensor is also quick and easy to mount in a panel, requiring only a single 19mm hole. It can be wired directly to the Trek Transponders PIR input terminals.

Specifications:

Material: plastic

Color: black or white (specify in order notes)

Sensor size: 17mm x 21mm

Working voltage: DC6-12V

Working temp: -20 °C ~ +50 °C

Static current: < 30uA

Output current: 2A

Triggered delay: 15s(non-adjustable)

Sense Method: passive infra red

Sense Angle: 120°

Sense Distance: 3m
